| Rated Voltage: | 12V | Nominal Capacity: | 65Ah |
|---|---|---|---|
| Dimensions (L×W×H): | 348±2mm × 167±2mm × 178±2mm (13.7×6.58×7.00 inches) | Total Height: | 178±2mm (7.00 inches) |
| Weight: | 19.2kg (42.3 lbs) | Terminal Type: | T6 |
| Container Material: | ABS | Long Service Life: | 12-year floating life at 25°C. |

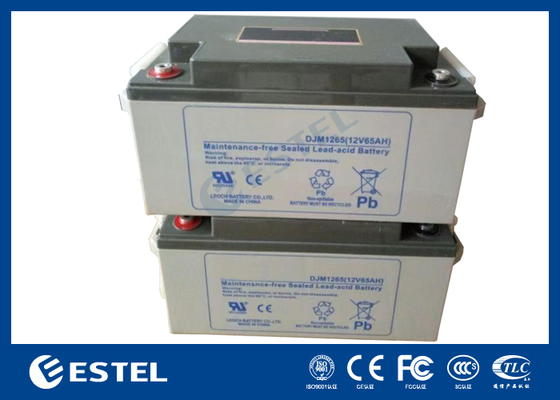

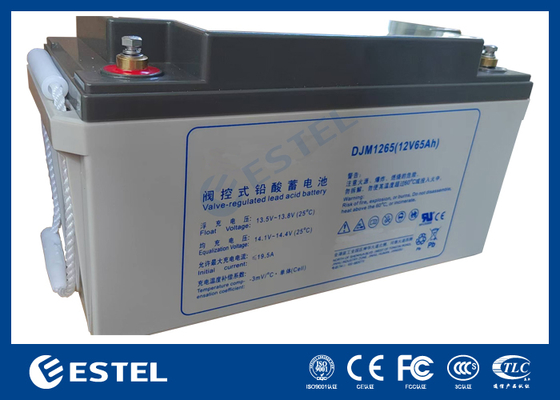

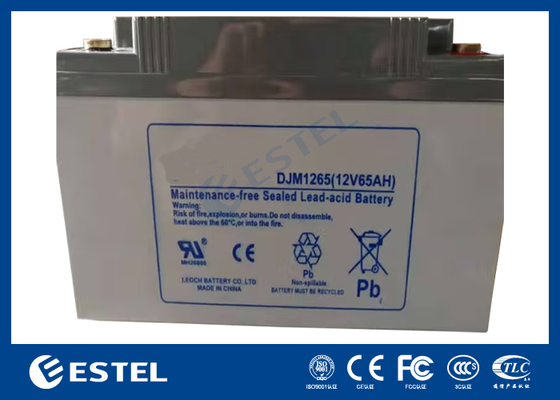

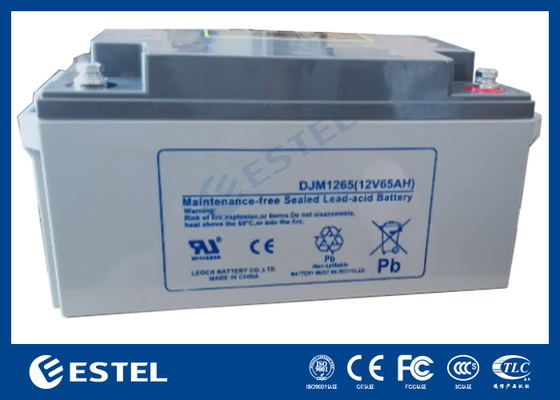

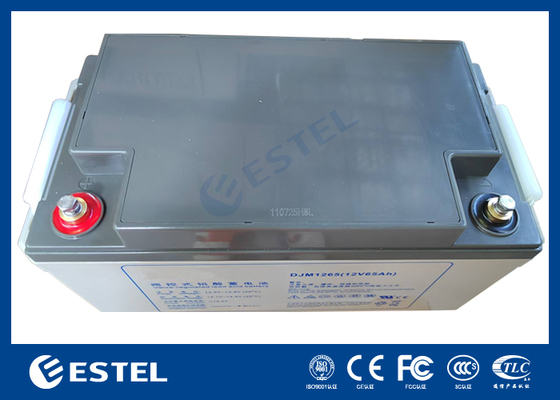

ESTEL DJM1265 is a high-performance 12V 65Ah general-purpose lead-acid battery designed for reliability and long service life. With a robust ABS container and advanced sealing technology, it delivers exceptional safety and flexibility for diverse applications. Engineered to operate efficiently across a wide temperature range, this battery offers up to 12 years of floating service life at 25°C. Certified to international standards, it is ideal for telecommunications, energy storage, emergency systems, and more.
| Discharge Rate | Capacity | Current |
| C20 | 68.6 Ah | 3.43A |
| C10 | 65.0 Ah | 6.50A |
| C5 | 59.5 Ah | 11.9A |
| C3 | 54.3 Ah | 18.1A |
| C1 | 41.6 Ah | 41.6A |
≤3% per month at 25°C
| FinalVoltage | 5min | 10min | 30min | 1h | 5h | 10h | 20h |
| 1.85V/cell | 129.8 | 92.3 | 56.9 | 36.5 | 11.1 | 6.24 | 3.31 |
| 1.80V/cell | 147.7 | 104.8 | 64.1 | 37.8 | 11.7 | 6.50 | 3.43 |
| 1.60V/cell | 183.7 | 129.3 | 68.7 | 41.6 | 12.5 | 6.83 | 3.58 |
| Final Voltage | 5min | 10min | 30min | 1h | 5h | 10h | 20h |
| 1.85V/cell | 242.5 | 173.7 | 112.6 | 70.6 | 21.9 | 12.4 | 5.59 |
| 1.80V/cel | 271.2 | 194.3 | 121.6 | 72.7 | 22.9 | 13.0 | 6.82 |
