| Cabinet dimension: | WxDxH=750x750x2050mm (Can be customized) | Internal space: | 19'' standard rack, 30U space |
|---|---|---|---|
| Material: | Galvanized sheet | Power capacity: | 9kW to 18kW |
| Rectifier module: | 3pcs to 6pcs 3kW modules | Cooling method: | Air conditioner or forced fan system |
| IP grade: | IP55 | Packaging: | Wooden case |
| ハイライト: | Outdoor Telecom Power System Rectifier,Scalable Telecom DC Power System,18kW Outdoor Cabinet Power System |
||

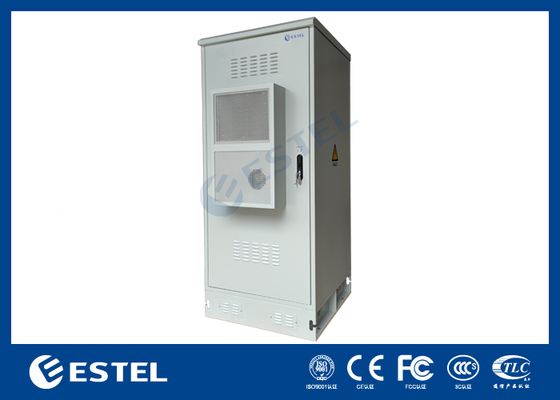

Outdoor Telecom Power System Rectifier 30U Outdoor Cabinet with 9kW to 18kW scalable Telecom DC Power System
1. Introduction

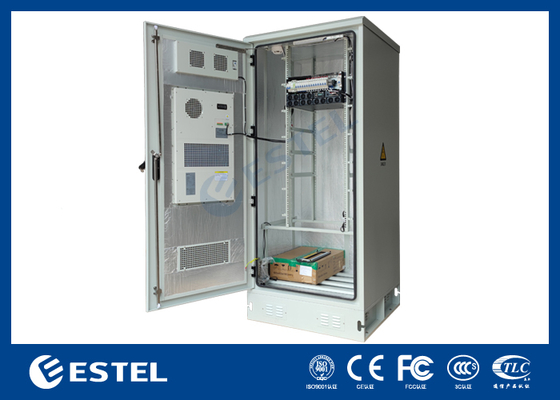

ET7575205A-9kW is an 30U outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need DC power supply. It is equipped with a environment monitoring unit, which provides real-time monitoring of the power parameters and environmental parameters, and provide users with alarm and remote notifications.
2. Applications
This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
3. Cabinet Features
4. Rectifier Power System Features
- LVD1: 2x80A, 2x63A;
- LVD2: 1x63A, 4x32A, 2x16A;
5. Cooling System Features
Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.
6. Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET7575205A-30U (5U/9kW) |
| Protection Level | IP55 | |
| External Dimension | HxWxD = 2050x750×750mm (Can be customized) | |
| Internal Dimension | 19 inch 30U | |
| Material | Galvanized steel, 1.2 mm thickness, single wall. | |
| Thickness of bearing parts: 2.0 mm | ||
| Insulation | 20mm PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door and one rear door | |
| Cooling System | Air conditioner | Optional |
| Fan | 2pcs fan with one fan controller | |
| Input Voltage | AC220V 60Hz | |
| Door sensor | Door sensor | Yes |
| Temperature sensor | Temper sensor | Yes |

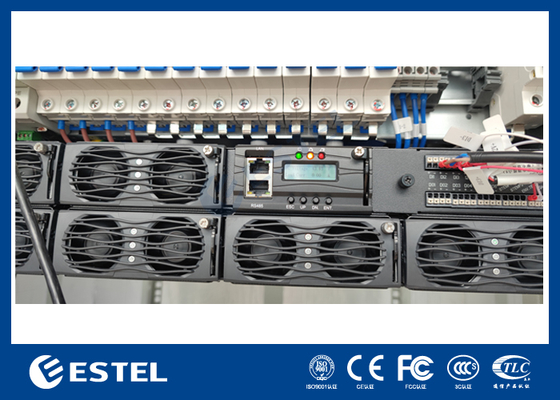

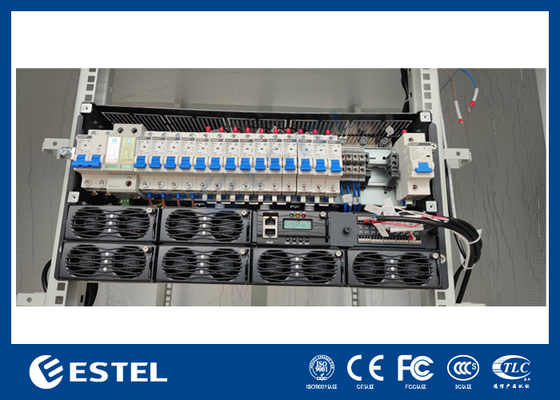

| Rectifier system | Rectifier system |
9kW 19" rack mount, 5U Rectifier System (Scalable, maximum capacity 18kW) |
|
3pcs 3kW rectifier modules (maximum 6pcs 3kW rectifier modules) |
||
| Monitoring Controller Module, SNMP communication port | ||

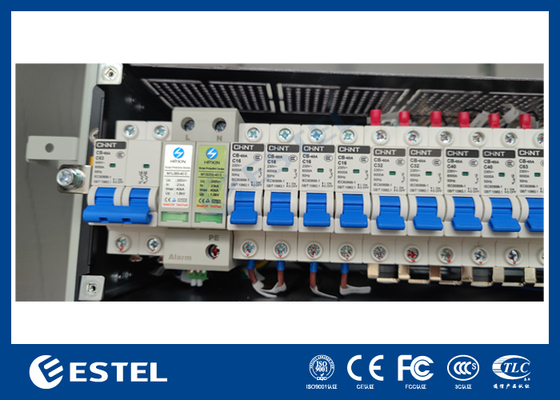

| Power distribution: | ||
| LVD1: 2*80A+2*63A | ||
| LVD2: 1*63A+4*32A+2*16A | ||
| LED Lamp | LED lamp for illumination with switch, Voltage: AC220V, 60Hz. | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
