商品の詳細:
お支払配送条件:
|
| 動作電圧範囲: | 165-300VAC | 入力周波数範囲: | 47〜63Hz |
|---|---|---|---|
| 力率: | 0.98 | 出力電圧VO1: | 27.5-28.5VDC |
| 出力電圧VO2: | 8.5-9.5VDC | 出力電流1 VO1: | 10a |
| 出力電流1 VO2: | 8a | 出力電流2 vo1: | 12.5a |
| ハイライト: | AC-DC power supply 28Vdc output,telecom power system 300Vac input,dual output power supply 9Vdc |
||

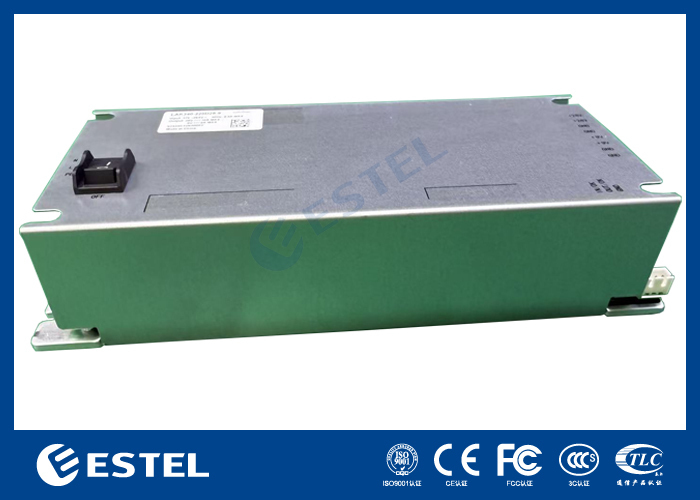

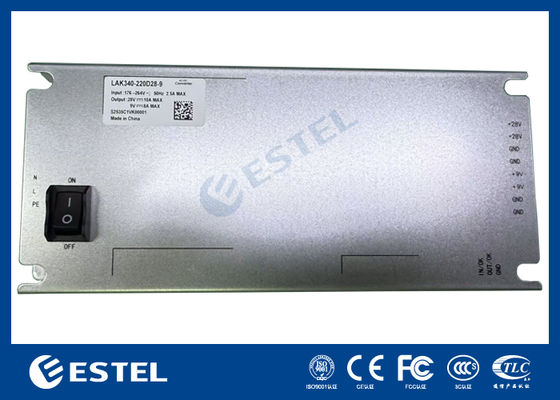

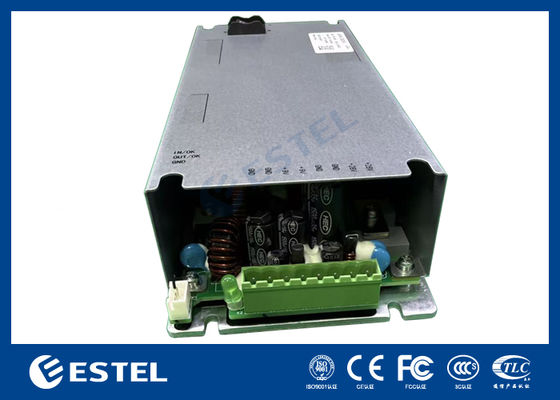

LAK340-220D28-9
Characteristic
This product is designed to comply with the RoHS2.0 directive(EU Direcive 2011/65/EU and its amending direcives (EU) 2015/863)
Typical efficiency:90%
Input over-voltage and under-voltage protection
Output overcurrent protection
Output overvoltage protection
Output short circuit protection
Meet GB4943
Application
| Parameter | Unit | Test Descniption | Minimum | Typical | Maximum |
| Operating voltage range | Vac | 165 | 220 | 300 | |
| Input frequency range | Hz | 47 | 50 | 63 | |
| Power factor | 0.98 |
| Parameter | Unit | Test Description | Minmum | Typical | Maximum | |
| Output voltage | Vo1 | Vdc | 27.5 | 28 | 28.5 | |
| Vo2 | Vdc | 8.5 | 9 | 9.5 | ||
| Output current 1 | Vo1 | A | 0 | 10 | ||
| Vo2 | A | 0 | 8 | |||
| Output current 2 | Vo1 | A | 0 | 12.5 | ||
| Vo2 | A | 0 | ||||
| Voltage regulation accuracy 1 | Vo1 | %In | ±1.5 | |||
| Vo2 | %In | ±3 | ||||
