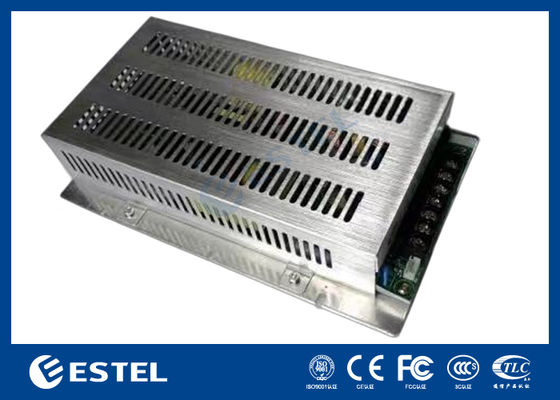

大画像 :  300W/ 24V AC/DC Switching Power Supply for Telecom Infrastructure and Power Management Solutions

商品の詳細:
起源の場所: 中国、中国(本土)
ブランド名: ESTEL
証明: ISO9001, CE, 3C, FCC, TLC
モデル番号: HFAD300-220S24
お支払配送条件:
最小注文数量: 1
価格: 358-2143 usd
パッケージの詳細: カートン/木製のケース
受渡し時間: 7-10営業日
支払条件: L/C、D/A、D/P、T/T、Western Union
供給の能力: 月額20,000セット
詳細製品概要
動作温度: -40 ~ +75 保管温度: -40から+85
相対湿度: 10%~90% 大気圧: 70~106
振動: GB2423.10-95規格 インパクト: GB2423.10-95規格
ハイライト:

24V switching power supply for telecom

,

300W AC DC power supply

,

telecom infrastructure power management

Switching Power Supply



1 . Usage Environment



Number

Item

Index

requirements

Unit Remark
1

Operating

temperature

-40 to +75
2

Storage

temperature

-40 to +85
3

Relative

humidity

10% to 90%
4

Heat

dissipation method

The radiator is attached to the bottom for

natural conduction heat dissipation



Attach system base plate for heat

dissipation

5 Atmospheric pressure 70 to 106 Kpa
6 Vibration conform to GB2423. 10-95 standard
7 Impact conform to GB2423. 10-95 standard





2 . Electrical characteristics



Number

Item

Technical

requirements

Unit

Remark
1 Input characteristics
1.1 Rated input voltage 100 to 240 Vac

1.2

Input voltage range 90 to 290 Vac

Power supply in -40 ~

+75 ℃ ambient

temperature It can start normally under full load

1.3



Maximum input current

2.0 Adc

Vin=220Vac , full output load

( 320w )

3.5 Adc

Vin=120Vac , full output load

( 320w )

1.4 Power Factor > 0 .95

Vin=220Vac , full output load

( 320w )

1.5

Rated

frequency

47 to 63 Hz

1.6



Starting

inrush current

< 8 3 A Vin=220 Vac ( cold machine test )
< 5 5 A Vin=120 Vac ( cold machine test )
1.7

Leakage

current

< 5 mA Vin=220 Vac
2 Output characteristics

Number

Item

Technical

requirements

Unit

Remark
2.1 Output rated voltage +24±0.3 Vdc Output no load or light load





2.2



Output current range



0 ~ 10A



Adc

Vin=220 Vac, full load below 65℃, 65℃-75℃ linear derating 30%



2.3



Output ripple

≤ 100

(-40 ℃, 200 mV ,Work

Tested after half an hour )





mV

Vin = 220 Vac , output full load 10 uF +104

Capacitance test ( with Width 20MHz)



2.4



Output spike noise

≤ 150

(-40 ℃, 200 mV ,Work

Tested after half an hour )





mV

Vin = 220 Vac , output full load 10 uF +104

Capacitance test ( with Width 20MHz)

2.5

Voltage

regulation accuracy

±2 % Full input voltage range

2.6



efficiency

≥ 88 % Vin=220Vac, full output (320w)
≥ 86 % Vin=120Vac, full output (320w)

2.7

dynamic

Over shoot

amp litu de

△ V : ≤ ±10 % Vo 2 5 %~ 5 0 %
50 %~ 75 %

Recover

y time

△ V : ≤ ±200 uS 25% to 50%







  response



50 %~ 75 %

2.8

Start-up

overshoot

amplitude



±10

% Vo

Shutdown

overshoot

amplitude

% Vo
2.9 Output rise time ≤ 200 mS Output voltage from 10 % rise to 90%
3 Protection features
3.1

Output current limiting

protection

12.5 to 16 Adc Vin=220Vac Vo=28Vdc
3.2

Output

overvoltage

protection

30 to 35 Vdc Vin=220Vac output half load

3.3



Output short- circuit

protection

Can be short-

circuited for a

long time , remove the short circuit Automatically

returns to normal


3.4

Input

overvoltage

protection

300 ~ 315 Vac Output half load
3.5

Input

overvoltage recovery

280 ~ 300 Vac
3.6

Output

undervoltage protection

70 to 85 Vac
3.7

Output

undervoltage recovery

80 to 95 Vac
4 Other features
4.1

Lightning protection

performance

5 KA
4.2 Specifications and dimensions 230 × 145 × 48 MM L×W× H





300W/ 24V AC/DC Switching Power Supply for Telecom Infrastructure and Power Management Solutions 03. Safet regulations and EMC characteristics





Number

Item Standard (or test condition) Remark



1



Dielectric

strength

Input to Output A .3000Vac /10mA/1min



No arcing, no breakdown

(Except the

lightning

protection unit)

Input to earth B .1500Vac /10mA/1min
Output to ground C .500Vac /10mA/1min

2



Insulation

resistance

Input to Output ≥ 10MΩ@500Vdc
Input to earth ≥ 10MΩ@500Vdc
Output to ground ≥ 10MΩ@500Vdc



3



Electromagnetic

compatibility

Conducted

interferenc e

EN55022 , CLASS B

Radiated

interferenc e

EN55022 , CLASS B




4 . Monitoring alarm function ( alarm interface IN/OK , OUT/OK The port can provide 10mA drive current. )





Number

Item Characteristic
1 Normal input LED indication The red light is on, indicating that there is AC input







2 Normal output LED indication The green light is on, indicating that the DC output is normal

3

Input online signal IN/OK

When the input is normal, the output is low level; when the input is powered off or

abnormal, the output is high level.

4 Output online signal OUT/OK

When the output is normal, the output is low

level; when the output is abnormal, the output is high level.



5 . Product appearance and dimensions ( unit : mm)



Dimensions ( L × W × H ): 230 × 145 × 48







6 . Interface terminal definition



1. Input terminal: E indicates connecting to the earth; N indicatesconnecting to the neutral wire; L indicates connecting to the live wire.

2. Output terminal: +24V indicates output 24V The positive terminal; GND indicates output 24V reference ground.



7 . Product material, installation drawing and dimensions ( u nit : mm)



Material : Shell base is made of 3.0mm Thick aluminum plate , the upper cover is made of 1mm Made of thick aluminum plate.



300W/ 24V AC/DC Switching Power Supply for Telecom Infrastructure and Power Management Solutions 1



8 . Aging test requirements



At an ambient temperature of 65 °C, without humidification, power input 220Vac, full load, bottom of the housing close to the heat sink (The recommended heat sink dimensions are as shown below. mm ), power-on aging.



300W/ 24V AC/DC Switching Power Supply for Telecom Infrastructure and Power Management Solutions 2
