1. Overview of 12kW Power Panel with 200A Telecom Power System

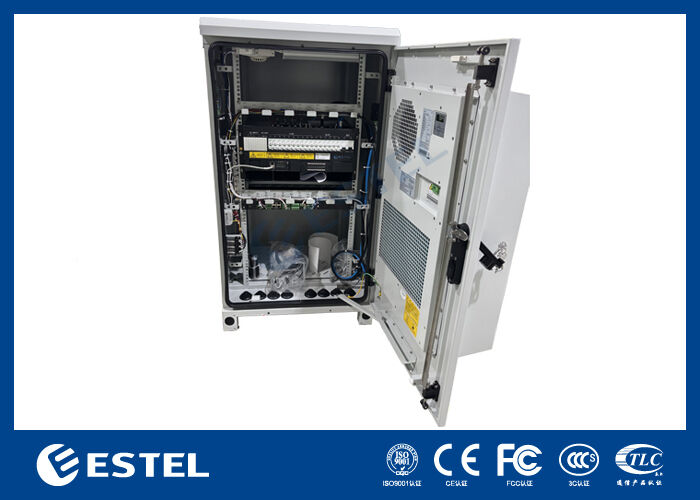

ESTEL’s customizale hybrid energy telecom power cabinet mainly consists of outdoor cabinet, telecom power system, power distribution unit, cooling system, and environment monitoring unit. This type of cabinet is customizablle, and its configurations are based different needs of different clients.

• Outdoor cabinet
• Telecom power system
• Cooling system

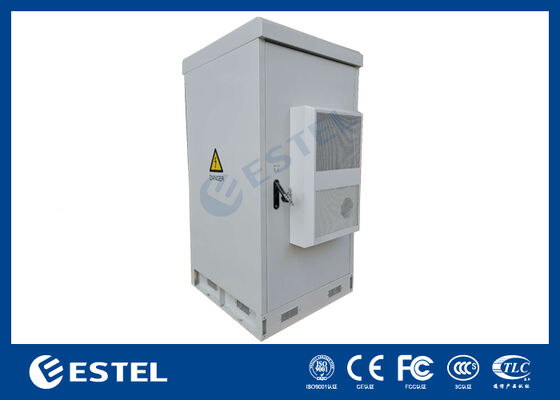

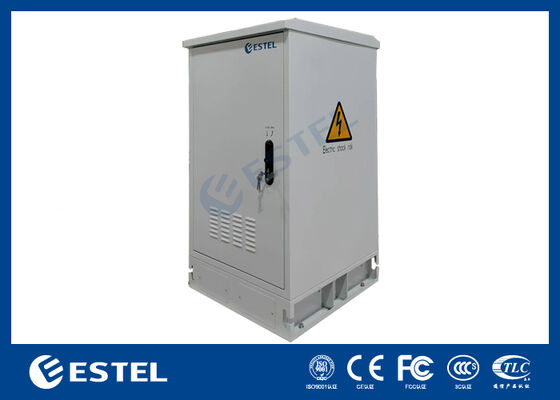

2. Features of Outdoor Cabinet

• Model: ET6565120A-20U
• Dimension: 650*650*1200mm
• Material: Galavanized steel plate
• Space: One compartment, 20U space, 19'' racks
• Door: One front door
• Lock: Three-point lock, support padlock
• Hinge: Embedded hinges
• Coating: Polyester powder coating
• Color: Based on client's requirements
• Installation: Floor mounted & Roof mounted

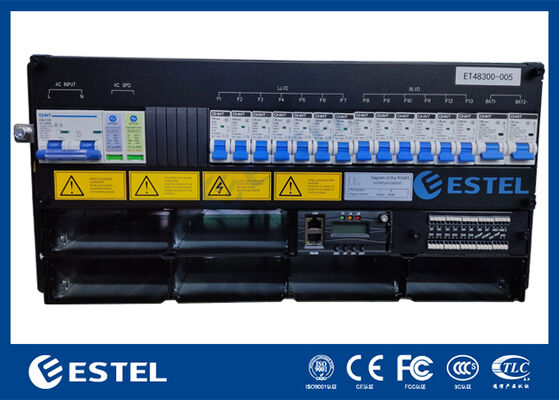

3. Features of Telecom Power System

• Rectifier system capacity: 12kW (4× 3kW)
• Power input: 220VAC, Single-phase
• DC output: -48VDC
• Load breakers: 63A, 32A, 16A, 10A (according to customer's requirements)
• Rich analog and digital input ports & RS485 ports and dry contact outputs for monitoring and alarm

4. Features of Cooling System

ESTEL provides different cooling systems based on client’s country climate characteristics, IT equipment thermal dissipation data, and client’s project power supply condition.

Option 1: 500W DC48V air conditioner

Advantages: Suitable for hot weather districts, provides suitable operation environment for cabinet inside power system and IT equipment.

Option 2: Fan system for cooling

Advantages: Low cost, low energy requirement, suitable for mild weather districts

5. Introduction of Manufacturer

ESTEL is a professional supplier for hybrid energy telecom power systems, integrated outdoor telecom cabinets, and environment temperature control solutions for outdoor telecom base stations.

We have a professional R&D team with extensive experience in network construction. Through close collaboration with telecommunications operators and integrators, our new or customizable product portfolio can meet the diverse needs of our customers. Until the end of 2024, we had obtained 46 patents.

We are committed to providing high quality and green products and solutions, continual improvement in customer satisfaction and supply chain management system. Our quality management systems (QMS) are registered to lSO9001, and environmental management systems are registered to lSO14001; 20 kinds of products have passed the certifications of China TL Certification Center (TLC).

We offer customized solutions for our customers that require a specific system capacity, a customized sub-rack size, or a designated breaker brand. The systems can be applied for the approval of CE, UL, lEC, and other certifications according to customers’ needs.

Our manufacturing base is located in Dongguan City, Guangdong Province, China, covering an area of approximately 20000 square meters. It is a production and distribution center for overseas markets.

Through our expertise in the ICT sector and continuous customer-centric innovation, we will provide more competitive solutions and professional engineering services for customers.
