商品の詳細:
お支払配送条件:
|
| サイズ: | 1000mm*650mm*650mm(高さ*幅*奥行き) | 材料: | 亜鉛メッキ板 |
|---|---|---|---|
| 厚さ: | 1.2mm | 空間: | 1*19インチ16Uラック |
| ドア: | 1つの正面玄関 | IPグレード: | IP55/IP65 |
| インストール: | フロアマウント | 応用: | 通信インフラストラクチャ |
| ハイライト: | 16U outdoor telecom cabinet,telecommunication cabinet with air conditioner,weatherproof telecom infrastructure cabinet |
||

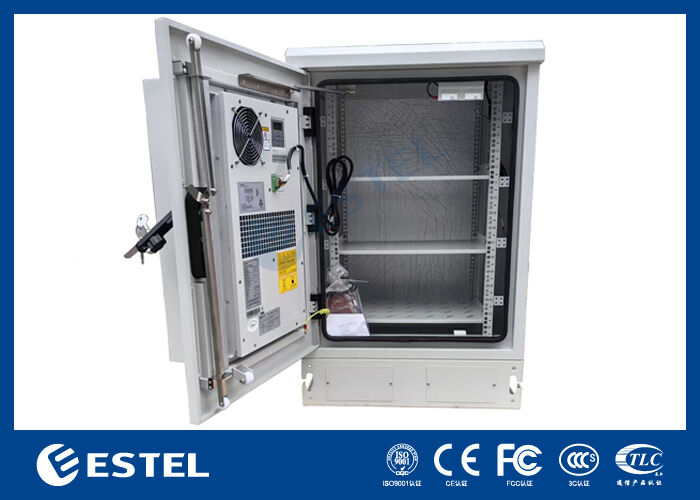

16U Outdoor Cabinet for Telecommunication Infrastructure with Air Conditioner Cooling
Product Overview

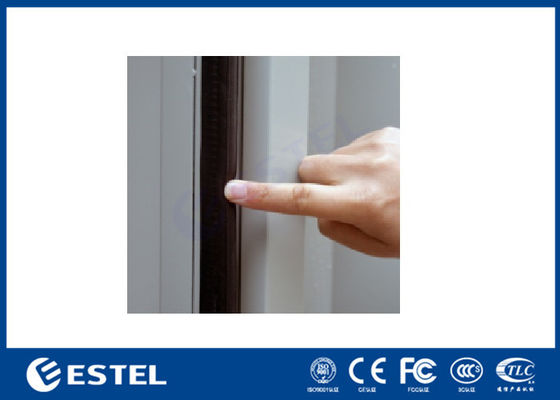

Built from premium corrosion-resistant materials and precision-sealed against the elements, this outdoor cabinet stands as a rugged defense for sensitive telecommunications equipment. Its robust construction is purpose-designed to thrive in the most demanding climates—whether blistering desert heat, sub-zero arctic conditions, or humid tropical environments. The enclosure delivers outstanding resistance to moisture intrusion, airborne dust, and UV exposure, effectively halting the slow deterioration that compromises equipment reliability. In addition to environmental threats, its reinforced mechanical structure provides excellent impact protection, shielding vital network assets from accidental damage, tampering, and extreme wind events.
Inside the ET Series 16U cabinet, careful attention has been given to space efficiency and deployment flexibility. The interior readily accommodates a full spectrum of active telecommunications equipment, including optical transmission platforms, industrial-grade Ethernet switches, remote radio heads, and small-cell backhaul gear, alongside passive telecommunications infrastructure such as optical distribution frames, digital distribution frames, voice termination modules, and passive optical splitters. With adjustable mounting rails and a range of modular accessories, network engineers can tailor the internal configuration to suit complex mixed-use installations within a single compact footprint.
Serving as a strategic outdoor aggregation hub, this cabinet streamlines physical layer management in remote or exposed locations. It incorporates well-designed cable management features, including clearly defined cable entry and exit points, structured routing pathways, and carefully maintained bend radius protection for fiber optic cabling. This organized approach minimizes the risk of cable stress, kinking, or signal degradation, supporting long-term transmission performance. Optional environmental control modules—such as thermostatically regulated fans, heating systems, and thermal insulation—can also be integrated to preserve a stable internal climate for temperature-sensitive components.
Specification
| Configuration | Item | Technical Parameter | |
| Cabinet | Type | Outdoor Daul-cabinet 48U Telecom Cabinet | |
| Protection Level | IP54/IP55/IP65 | ||
| External Dimension | 1000mm*650mm*650mm(H*W*D) | ||
| Plinth | 150mm height | ||
| Internal Space | 1*19 inch 16U | ||
| Material |
Material: Galvanized sheet plate, single layer, with 20mm PEF insulation |
||
| Coating | Polyester powder coating | ||
| Color | RAL7035(customized) | ||
| Lock system | Anti-theft three-point locking system | ||
| Hinge | Inner hinge | ||
| Installation | Pole mounted | ||

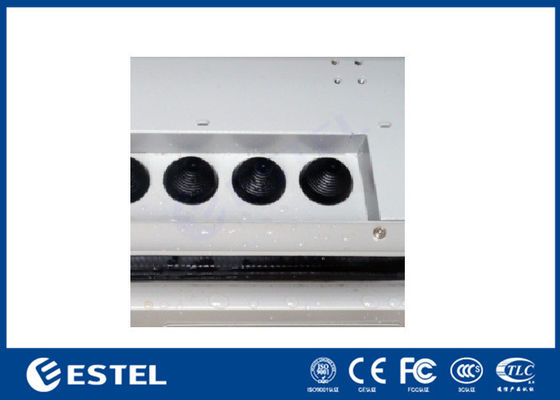

| Cable Routing | Cable in and out from the bottom of cabinet | ||
| Maintenance | One left door, one right door, front maintenance | ||
| Cooling | Air Conditioner |
230VAC, 50Hz, 500W(optional) |
|
| Others |
220VAC 50HZ LED lamp |
||
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) | |
| Storage Temperature | -40℃~+70℃ | ||
| Working Humidity | 5%~95%(No condensation) | ||
| Working Altitude | 0~4000 meters | ||
| Package | Wooden case | 1 unit per case | |
